Kubernetes Blue-Green Deployment on Kubesphere

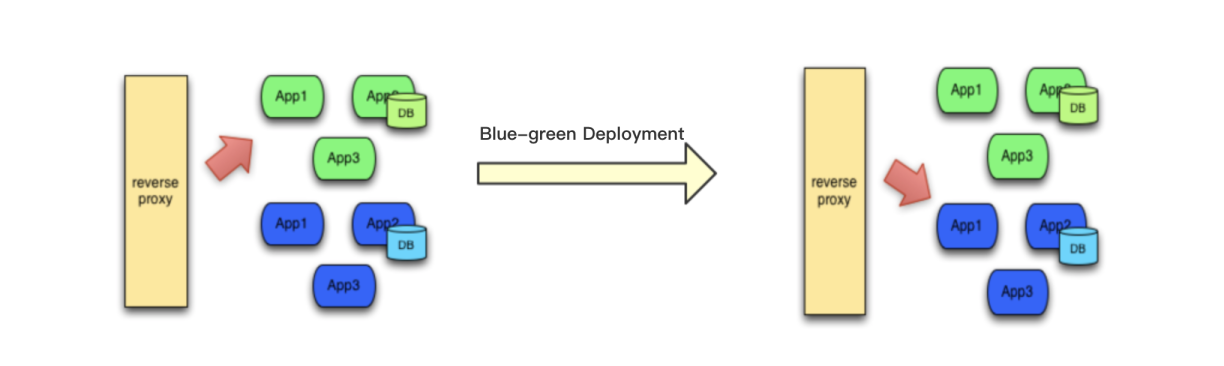

The blue-green release provides a zero downtime deployment, which means the new version can be deployed with the old one preserved. At any time, only one of the versions is active serving all the traffic, while the other one remains idle. If there is a problem with running, you can quickly roll back to the old version.



Create a Blue-green Deployment Job

  1. Log in to KubeSphere as project-regular and go to Grayscale Release. Under Release Modes, click Create on the right of Blue-Green Deployment.

  2. Set a name for it and click Next.

  3. On the Service Settings tab, select your app from the drop-down list and the Service for which you want to implement the blue-green deployment. If you also use the sample app Bookinfo, select reviews and click Next.

  4. On the New Version Settings tab, add another version (e.g kubesphere/examples-bookinfo-reviews-v2:1.16.2) as shown in the following figure and click Next.

  5. On the Strategy Settings tab, to allow the app version v2 to take over all the traffic, select Take Over and click Create.

  6. The blue-green deployment job created is displayed under the Release Jobs tab. Click it to view details.

  7. Wait for a while and you can see all the traffic go to the version v2.

  8. The new Deployment is created as well.

  9. You can get the virtual service to identify the weight by running the following command:

    kubectl -n demo-project get virtualservice -o yaml


    • When you run the command above, replace demo-project with your own project (namely, namespace) name.
    • If you want to run the command from the web kubectl on the KubeSphere console, you need to use the user admin.
  10. Expected output:

        - reviews
        - route:
          - destination:
              host: reviews
                number: 9080
              subset: v2
            weight: 100

Take a Job Offline

After you implement the blue-green deployment, and the result meets your expectation, you can take the task offline with the version v1 removed by clicking Delete.
